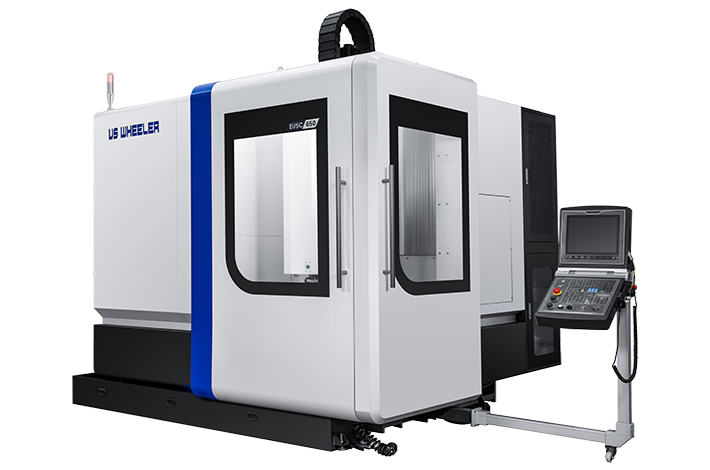

EU5C-650
| Category | Item | Specification |
| Workpiece | Workpiece diameter[mm] | 650 |
| Workpiece length[mm] | 380 | |
| Travels | Stroke X[mm] | 820 |
| Stroke Y[mm] | 520 | |
| Stroke Z[mm] | 500 | |
| Stroke B[deg] | 220 | |
| Stroke C[deg] | 360 | |
| Rapid traverse(X)[m/min] | 24 | |
| Rapid traverse(Y)[m/min] | 24 | |
| Rapid traverse(Z)[m/min] | 24 | |
| Rapid traverse(B)[r/min] | 25 | |
| Rapid traverse(C)[r/min] | 25 | |
| Distance from spindle nose to table surface[mm] | 150 | |
| Table | Workpiece allowable Load[kg] | 300 |
| Table Size[mm] | Ø650 | |
| Category | CNC brand | Fanuc Siemens |
| CNC system | Siemens 0i-MF Plus | |
| Origin | China |
| Axis | X | Y | Z |
| Drive | Ball screw | Ball screw | Ball screw |
| Qty | 1 | 1 | 1 |
